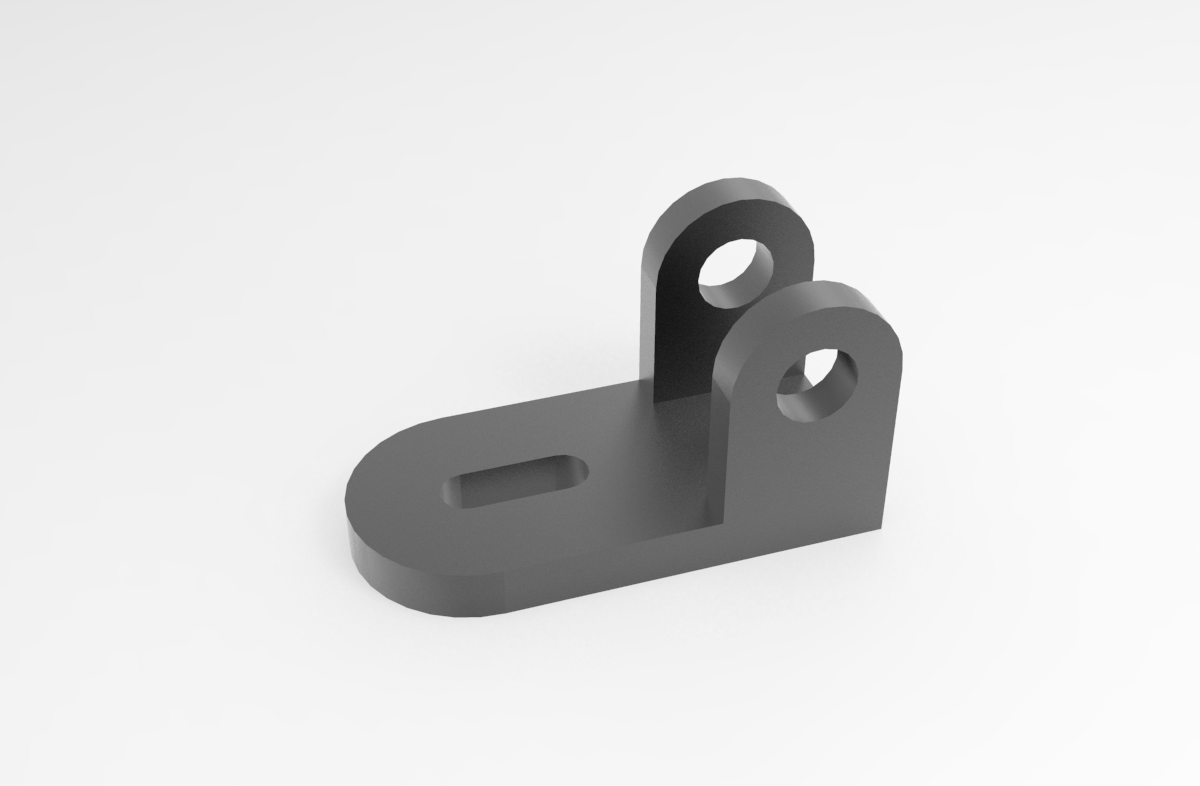

Actuator Base: 3D Parametric Model

A base actuator is an engineering device that converts energy into linear motion or force. It is commonly used in various industries and applications, including manufacturing, automation, robotics, aerospace, and many others

The intended material is metal but it can also be produced of other materials.

The following parameters are adjustable:

• Width: min(115) - max(130)

• Length: min(42) - max(60)

• Thickness: min(10) - max(18)

• Height: min(50) - max(80)

• Holder Width: min(35) - max(50)

• Holder Thickness: min(8) - max(14)

• Holder Diameter: min(10) - max(20)

• Hole Diameter: mix(13) - mx(18)
