Ceiling lighting fixture

Ceiling lighting fixture

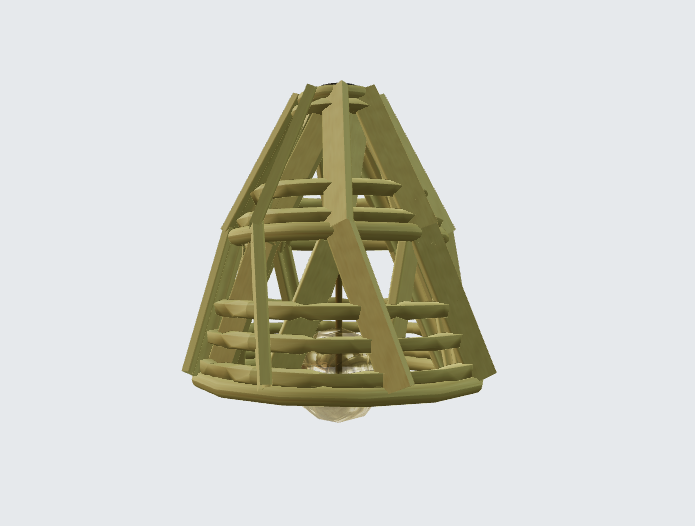

A light fixture element inspired by geometric patterns. The outer cover of the hanging light element has a cage like structure created by rotating of geometrical patterns. The structure is designed to be constructed using bamboo sections. The whole structure is parametric and can be changed according to the user requirements and preferences. The units for the light fixture parameters is assumed as in meters.

Parameters that can be changed:-

Top and bottom ring support radius - min - 0.05; max - 1.0

Ring supports radius - min - 0.08; max - 0.2

Light position - min - 0.0; max - 2.0 (lesser number=longer height)

Light source radius - min - 0.0; max - 1.0

Distance of top from middle - min - 0.0; max - 3.0

Height of light fixture - min - 0.0; max - 3.0

Top circle radius - min - 0.5; max - 1.0

Middle Circle radius - min - 1.0; max - 3.0

Bottom Circle radius - min - 2.0; max - 5.0

No. of divisions - min - 4.0; max - 10.0
