Climbing Wall

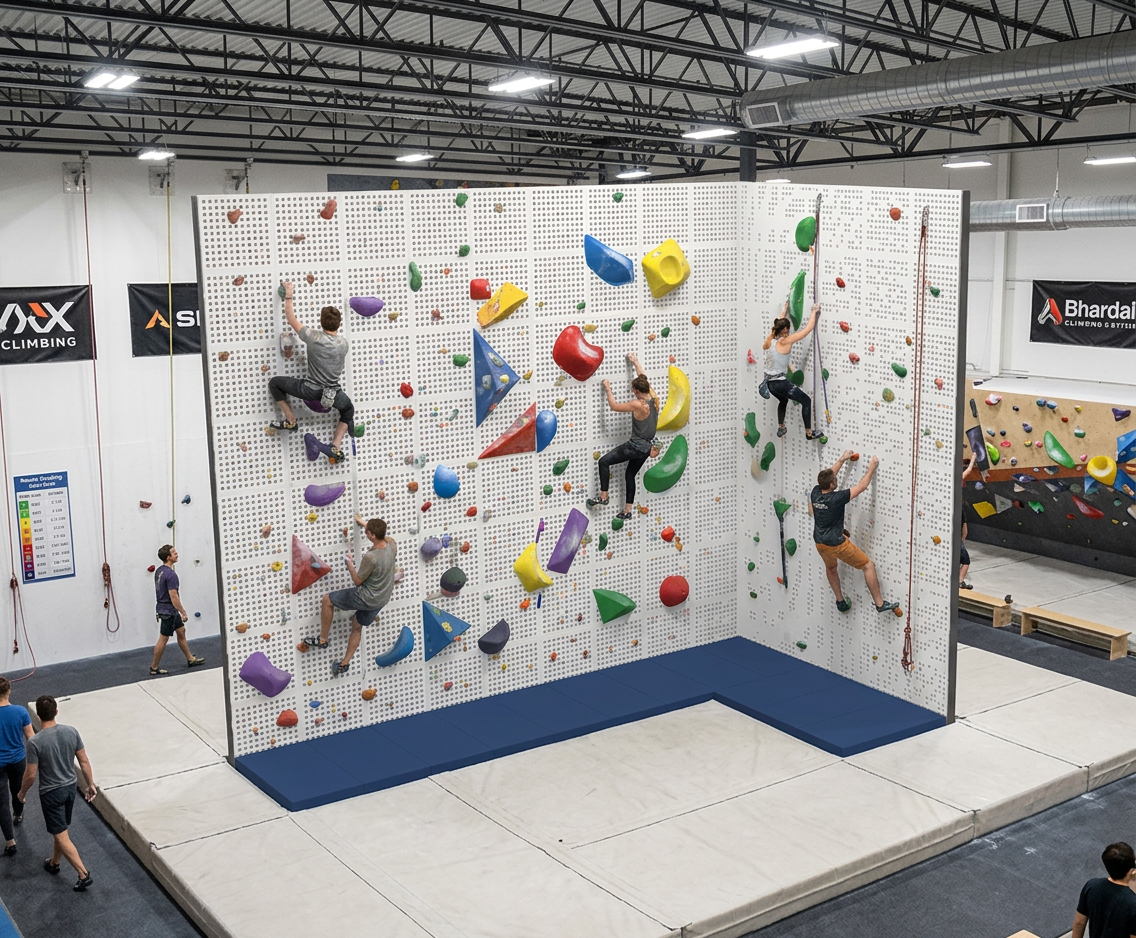

A modular 3D climbing wall system designed for indoor bouldering environments and training facilities. The model features perforated climbing wall panels arranged in a corner configuration, allowing flexible layout adjustments based on available space. Each panel follows a standardized grid pattern for mounting climbing holds, enabling customizable routes and difficulty levels.

At the base of the wall, padded bouldering mats provide safety and fall protection. The mats are arranged modularly to match the wall footprint and can be configured depending on the wall size.

The system is built as a parametric configurator, allowing users to dynamically adjust key dimensions and components in real time. Parameters include wall height, left and right wall widths, wall type, pad configuration, and protective caps. As parameters change, the system automatically recalculates the number of wall panels, mats, and caps required.

A built in bill of materials and pricing table updates instantly, showing quantities, unit prices, and total cost for each component.

Key features include
• Adjustable wall height and width
• Corner wall configuration with modular panels
• Safety crash mats aligned with wall footprint
• Automatic component counting and cost calculation
