Ilizarov apparatus: 3D/2D Parametric Model

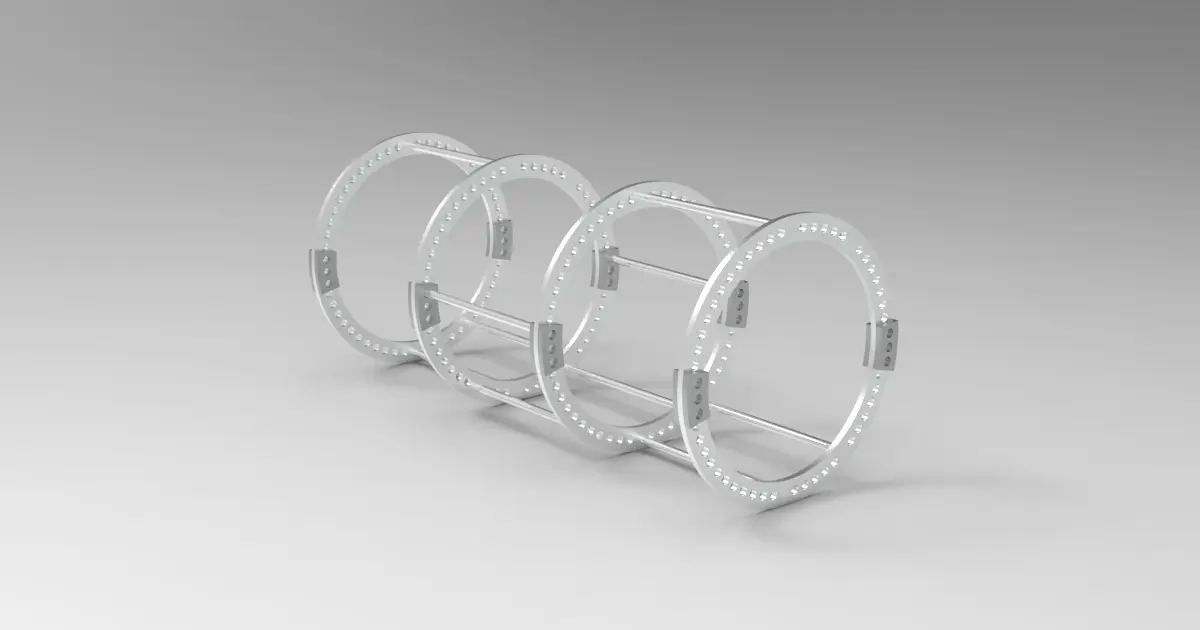

Explore our versatile 2D/3D model of the Ilizarov Apparatus, designed for treating fractures and bone deformities. The apparatus consists of several metal rings held in place by pins inserted through the skin into the bone.
The presumed material is stainless steel or titanium. Various parameter settings are available, such as:

• Ring diameter

• Placement of rings relative to the bone

• Length and diameter of pins

• Angle of inclination for pins and rings

The model is in a parametric viewing tool where you can use sliders to adjust parameters. It serves not only as a customization tool but also as a means to showcase your product using 3D models. A great example of a universal configuration.

The intended material is stainless steel or titanium.
The following parameters are adjustable:

limb diameter: min(80) - max(240)
limb padding: min(30) - max(80)
apparatus padding: min(15) - max(30)
perforations radius: min(2) - max(5)
apparatus count: min(3) - max(4)
