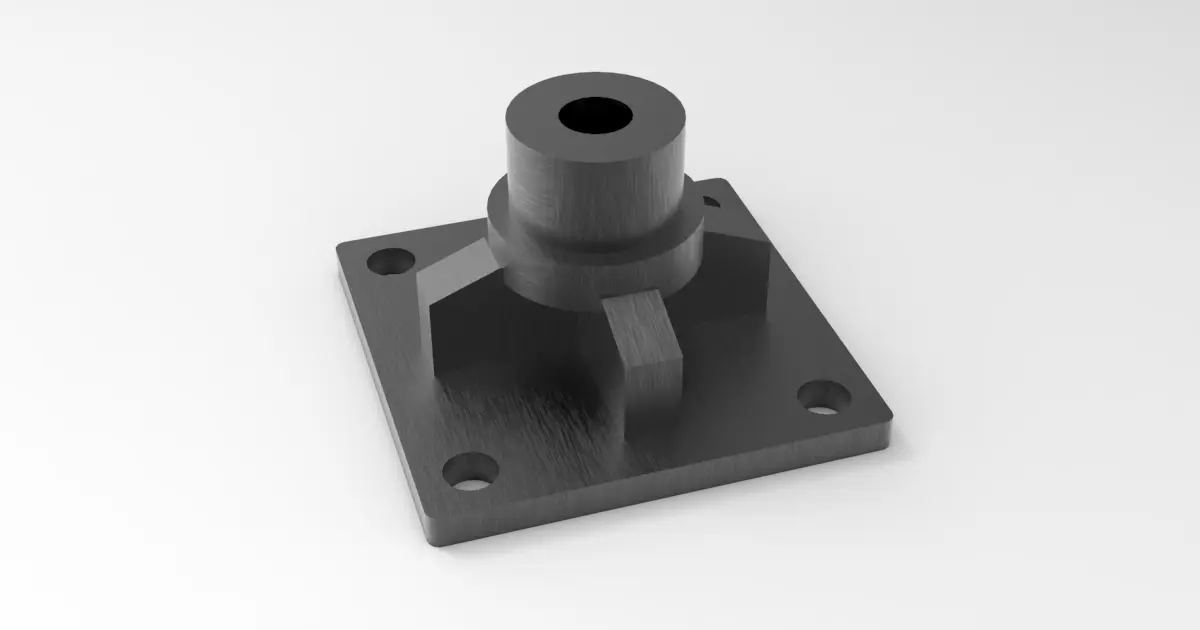

Shaft Support: 3D Parametric Model

A shaft support is a mechanical component designed to provide stability, alignment, and support to a rotating shaft within a machine or system. It is a crucial element in various applications where rotating shafts are involved, such as industrial machinery, automotive systems, power transmission equipment, and more.

The intended material is metal but it can also be produced of other materials.
The following parameters are adjustable:

• Width: min(1000) - max(130)

• Height: min(65) - max(80)

• Length: min(100) - max(130)

• Hole Diameter: min(10) - max(15)

• Shaft Outside Diameter: min(20) - max(30)

• Shaft Diameter: min(10) - max(20)

• Thickness: min(8) - max(15)
