Node Ports
Nodes are connected to each other through input and output ports. Each port has a specific type and must be connected to an input value of the appropriate type.
Port Types & Colors
Ports are colored according to their types, aiding in navigation and correct connections.
Input and output ports on a node
Connecting Ports
To connect ports, the output port of one node must be linked to the input port of another. It's essential to connect ports of compatible types for proper functionality.
Port type mismatch error
Multiple Connections
Multiple input data can be connected to a single input port, and processed based on connection order.
Multiple connections to one port
Output Ports
An output port can provide an unlimited number of output data, usable in various input ports of different nodes. To connect nodes, link wires from the output port to other ports by left-clicking.

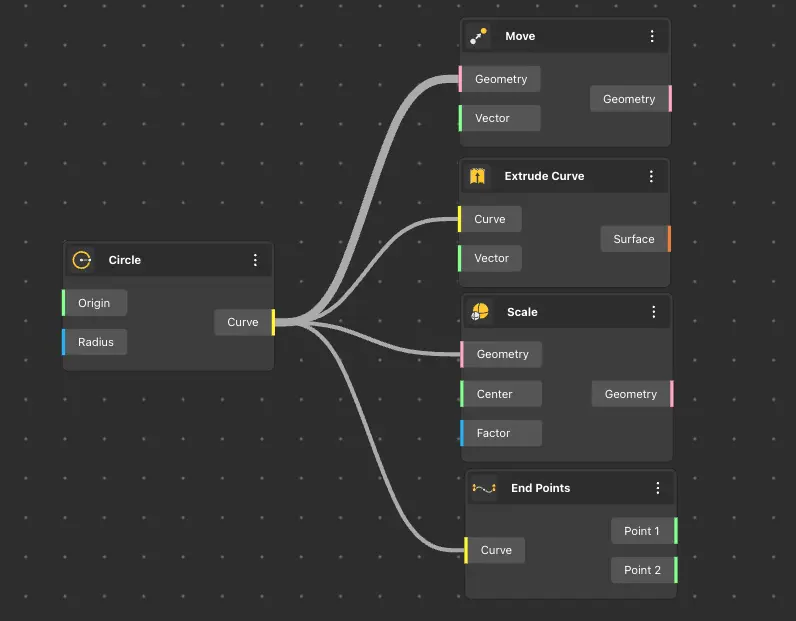

Output port with multiple connections
