Planes

Utilizing planes facilitates the construction process and opens up various possibilities. With Plane nodes, geometries can be constructed on any plane or transferred from one plane to another. Most nodes that receive a point as origin can also receive plane.

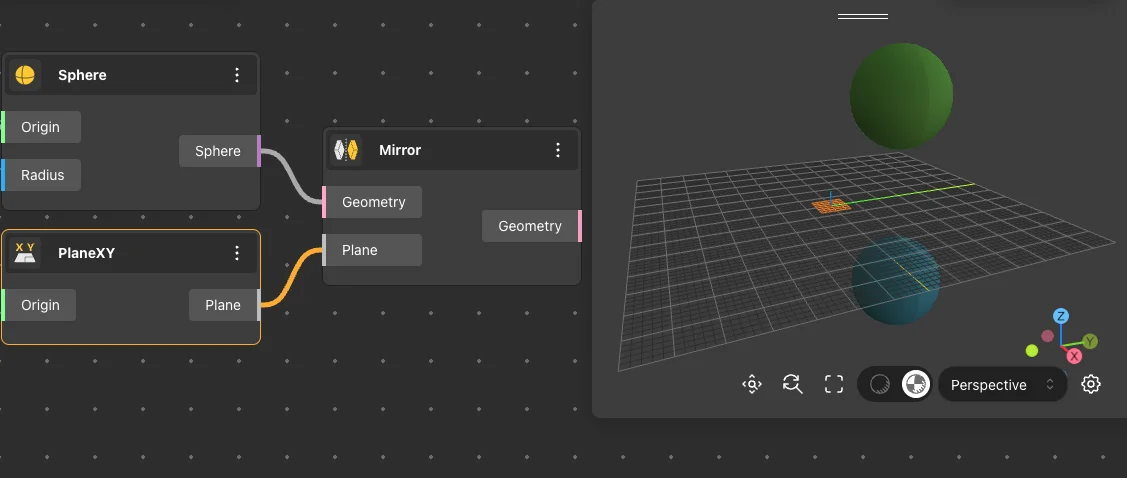

Plane XY

The Plane XY node returns the plane formed by the XY axes.

Usage example

Plane XZ

Plane XZ returns the plane formed by the XZ axes.

Usage example

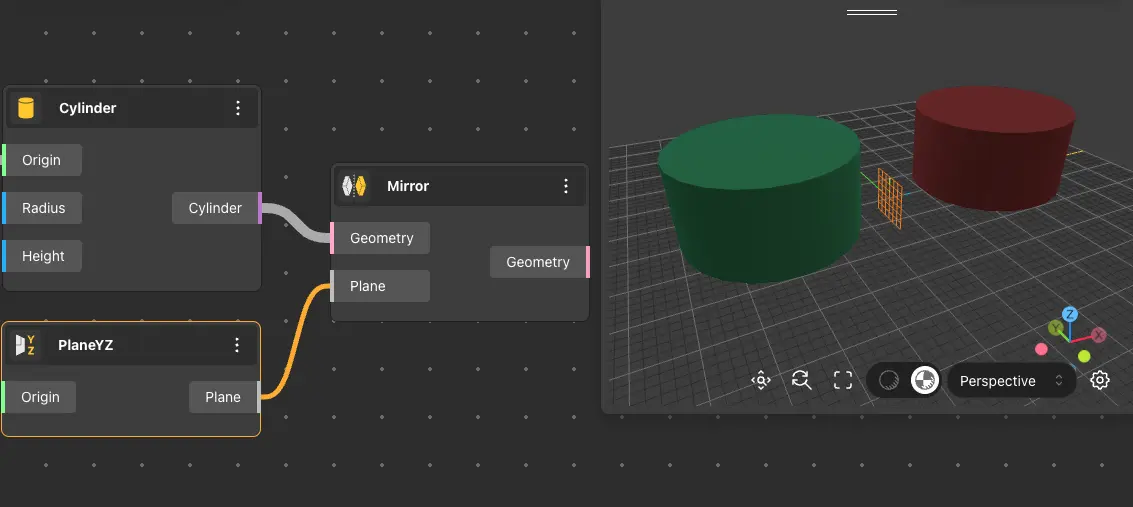

Plane YZ

Plane YZ returns the plane formed by the YZ axes.

Usage example

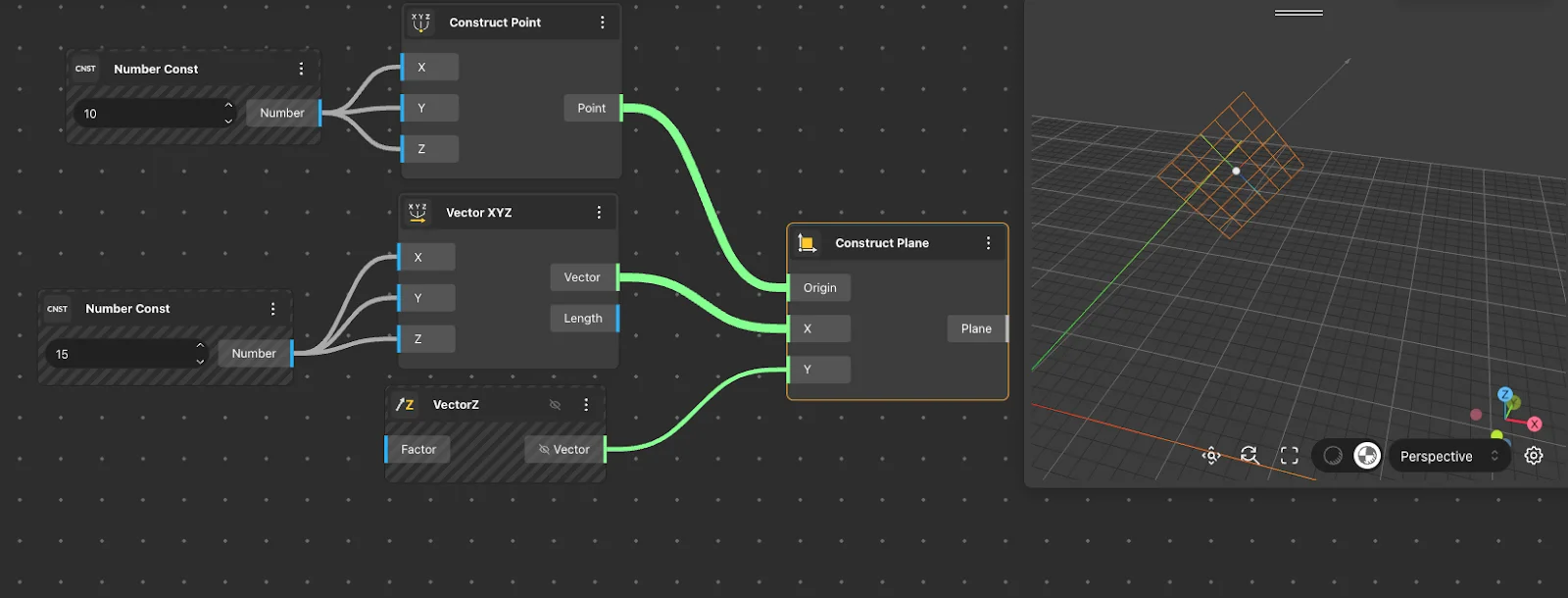

Construct Plane

The Construct Plane node receives a center point as input and constructs a new plane centered at that point. The directions of the X and Y vectors of the plane correspond to the corresponding values received in the input.

Usage example
