The Curve Analysis group is designed for conducting analyses on curves.

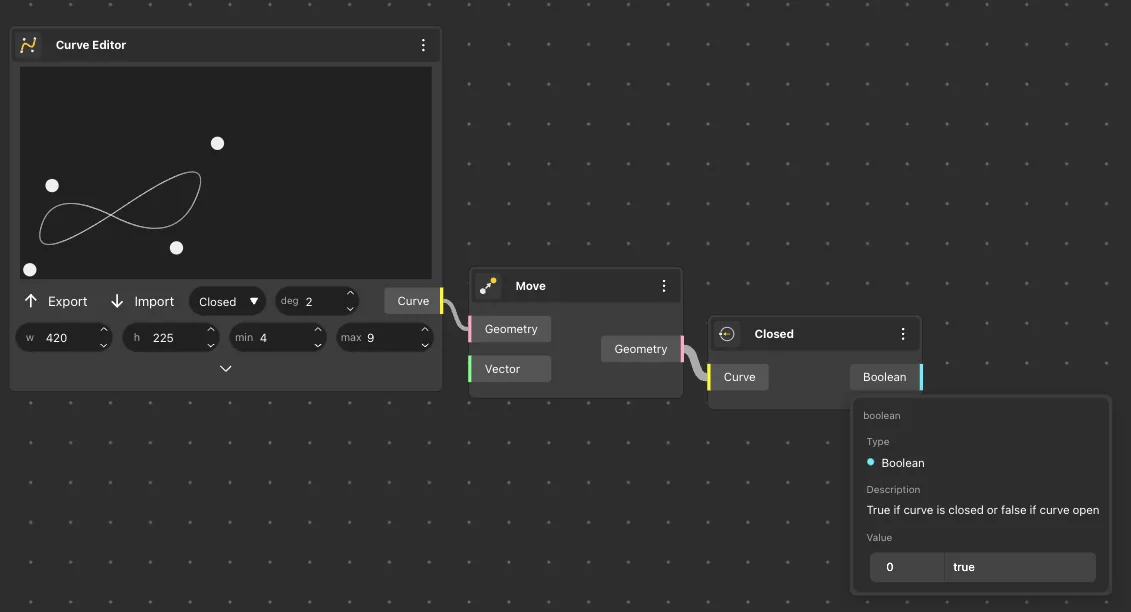

Closed

The Closed node returns a boolean value indicating whether the curve generated in the nodes is open or closed. It returns true if the curve is closed, and false otherwise.

Node usages

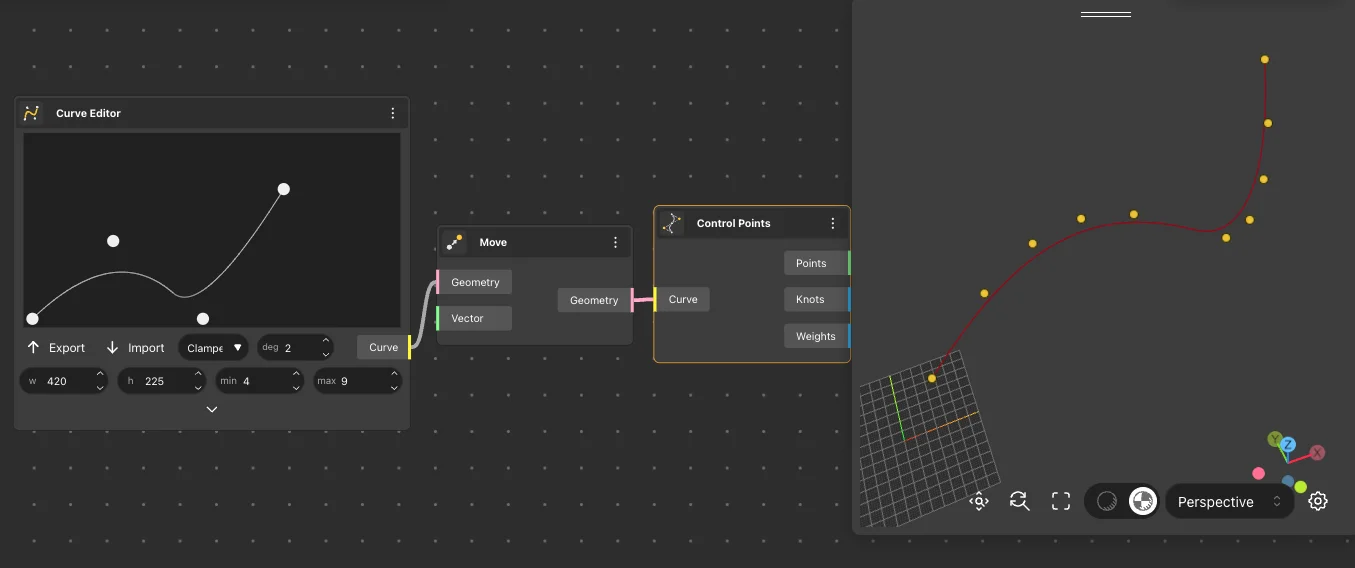

Control Points

The Control Points node returns the control points, knots, and weights of the input curve.

Node usages

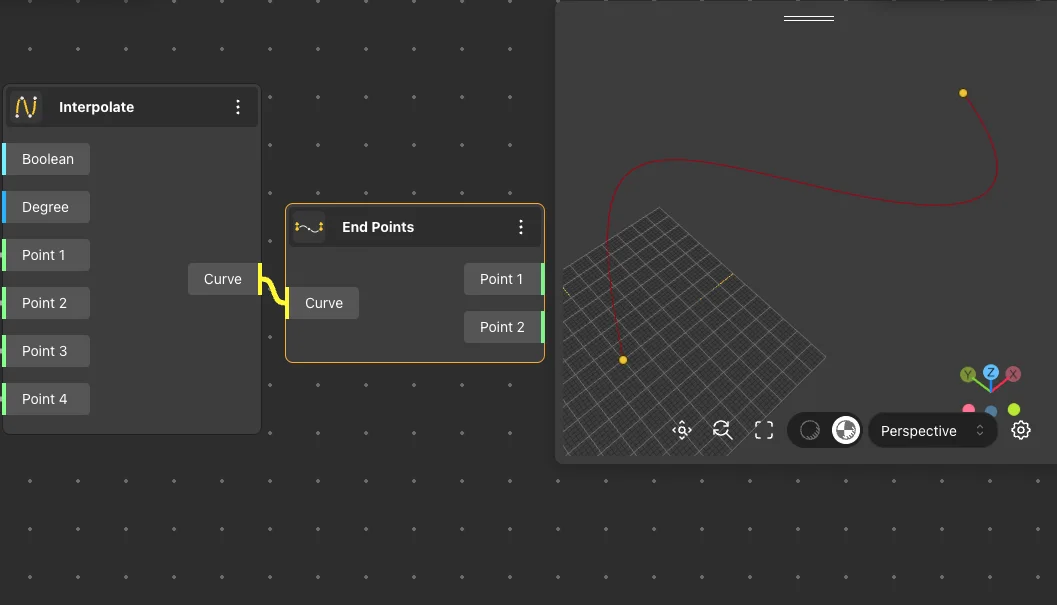

End Points

The End Points node returns the start point and end point of the curve received in its input.

Node usages

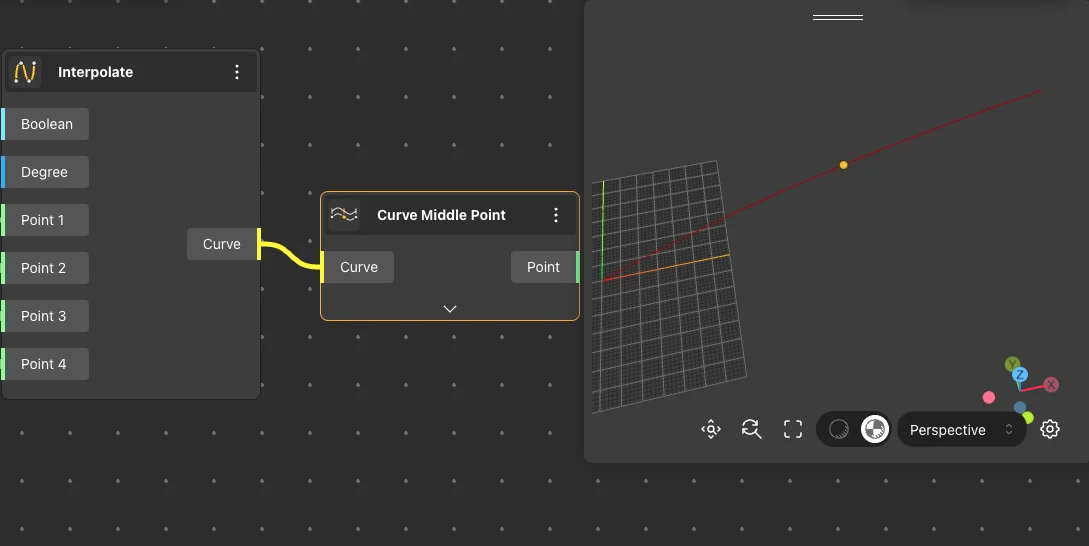

Curve Middle Point

The Curve Middle Point node takes a curve as input and returns its midpoint.

Node usages

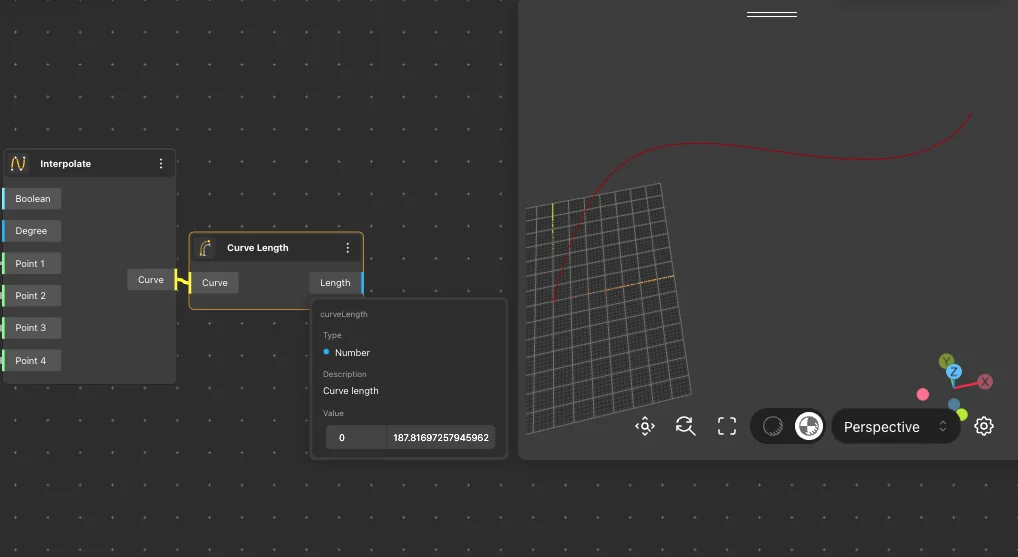

Curve Length

The Curve Length node takes a curve as input and returns its length.

Node usages

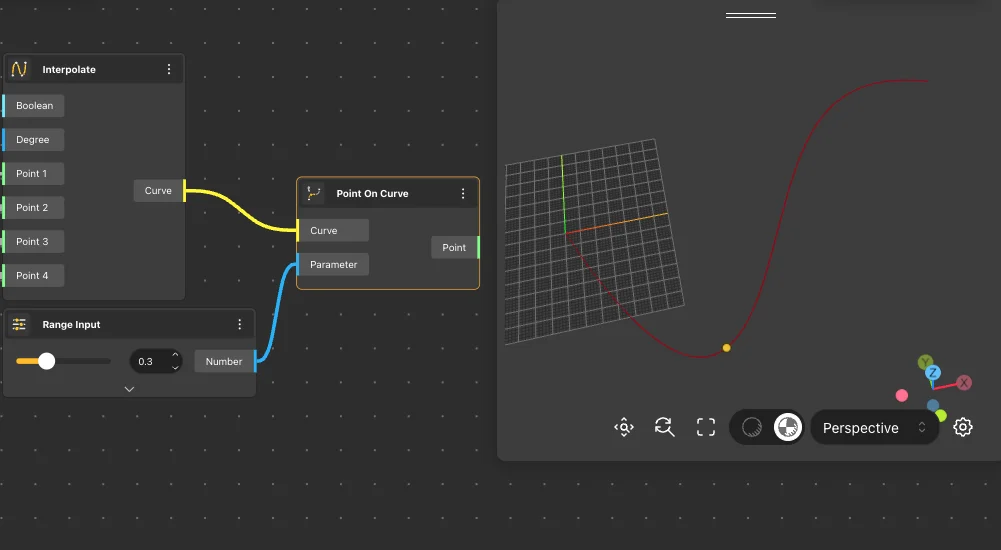

Point On Curve

A Point On Curve node takes a curve and parameter(s) as input and returns the item(s) corresponding to the parameter.

Node usages

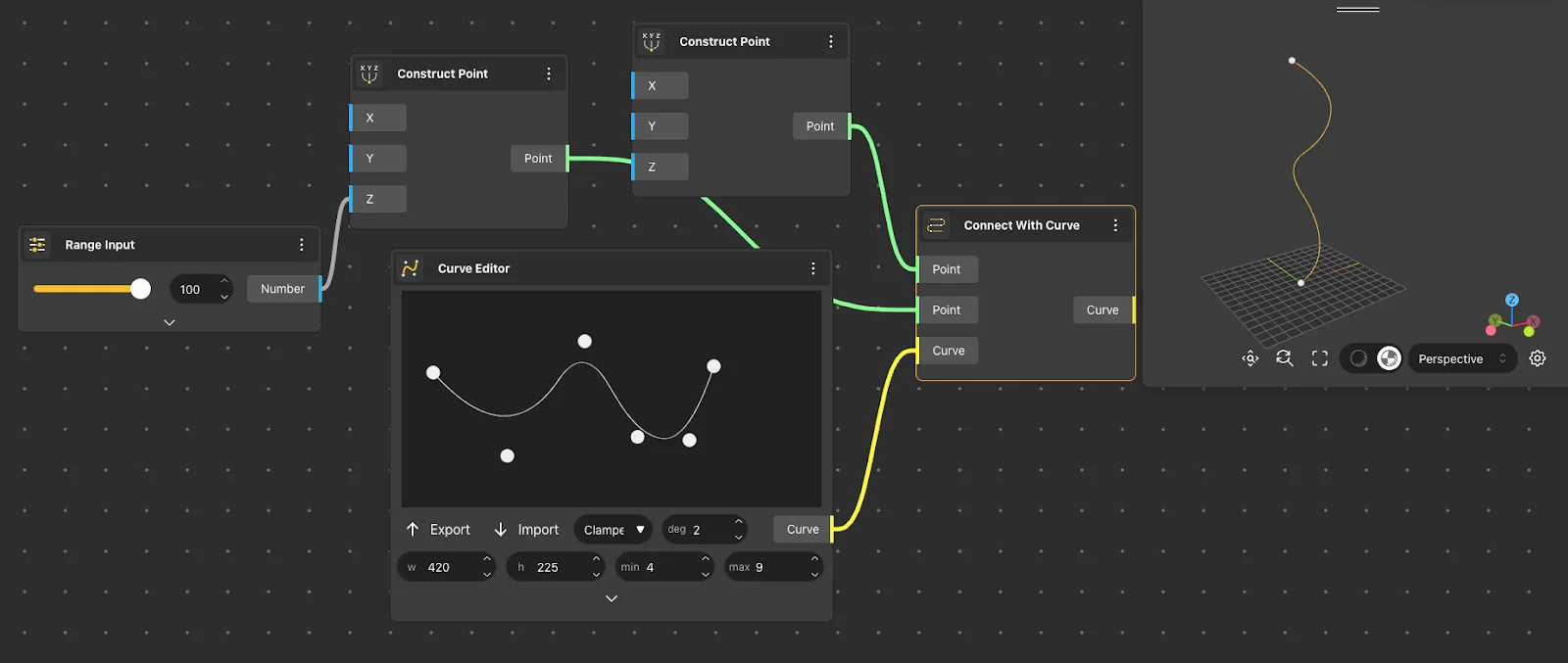

Connect With Curve

A Connect With Curve node takes two points and a curve as input, and positions that curve between those points. The curve should be an open curve.

Node usages

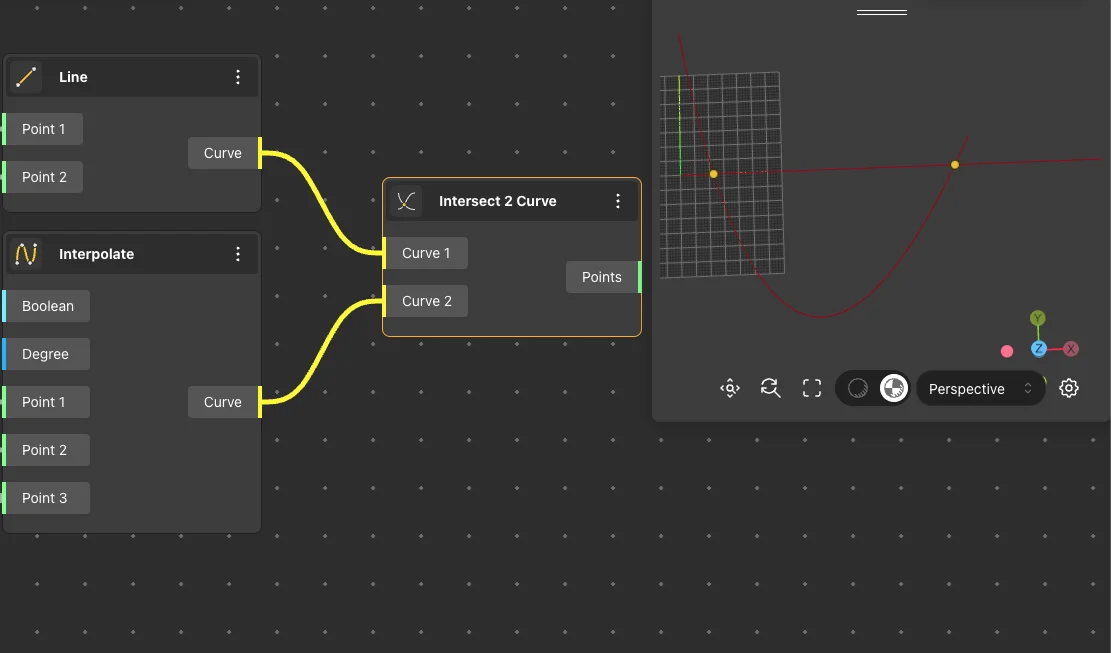

Intersection 2 Curve

The Intersection node returns the points of intersection between the curves received from the input nodes.

Node usages

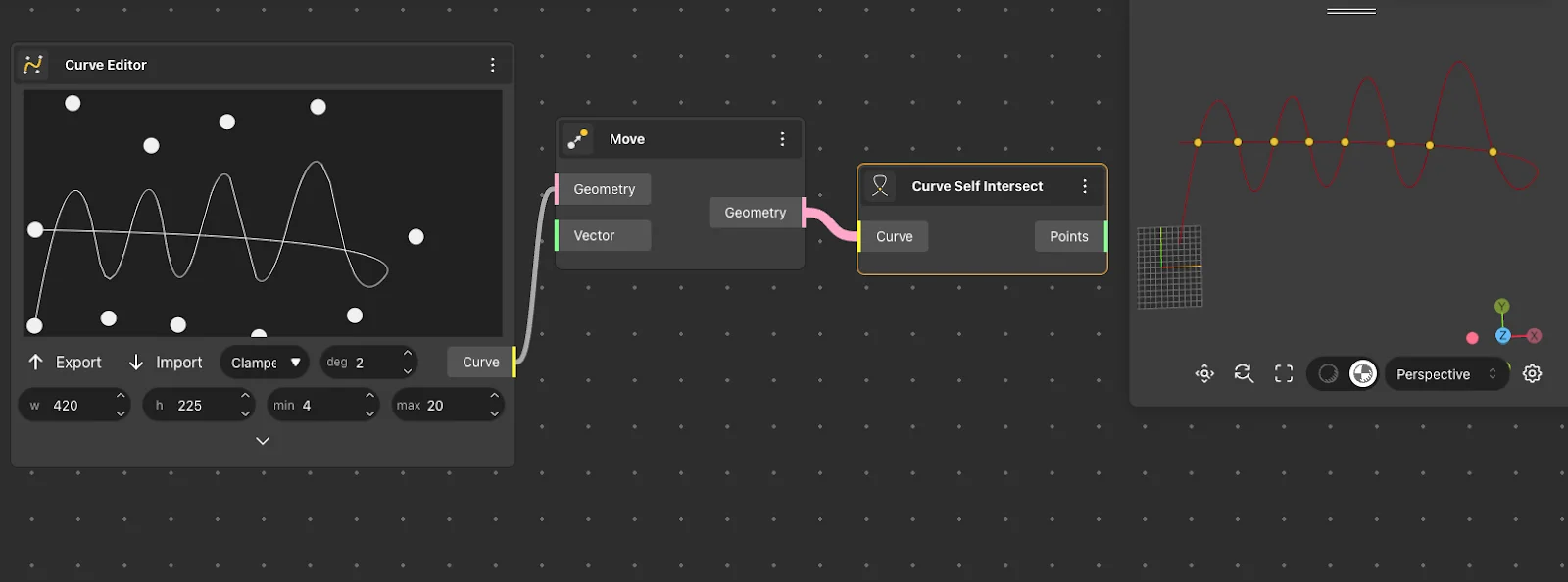

Curve Self Intersect

The Curve Self Intersect node returns the self-intersection points of the curve received from the input node.

Node usages

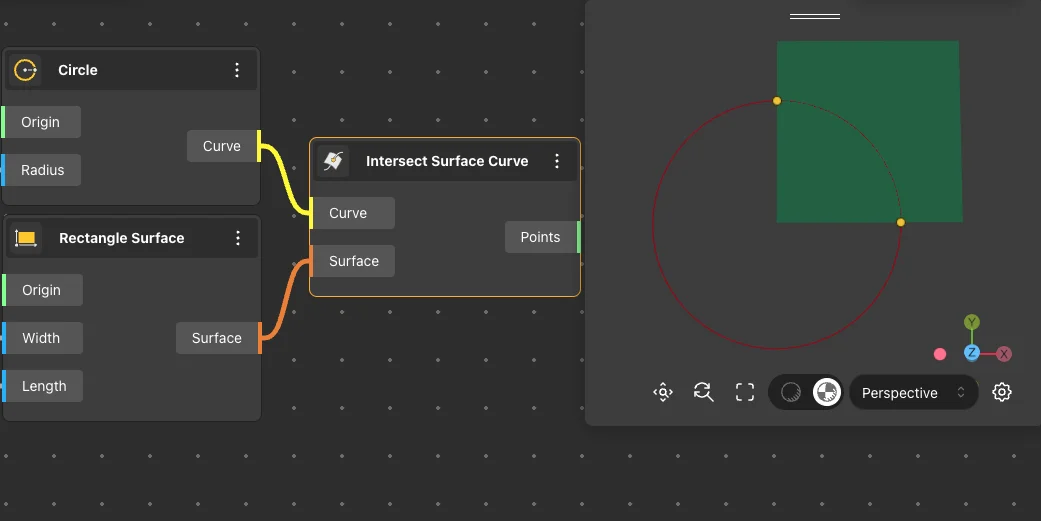

Intersect Surface Curve

The Intersect Surface Curve node returns the intersection points between the curve and surface obtained from the input nodes.

Node usages

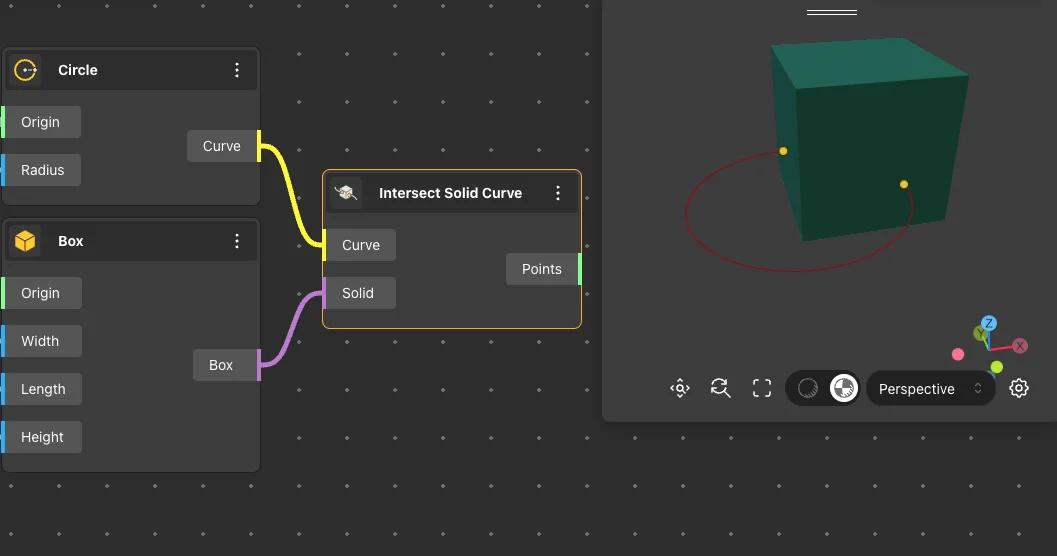

Intersect Solid Curve

The Intersect Solid Curve node returns the intersection points between the curve and solid obtained from the input nodes.

Node usages
