Points
Point operations - construct, deconstruct, distance, closest point, sort, and deduplication.

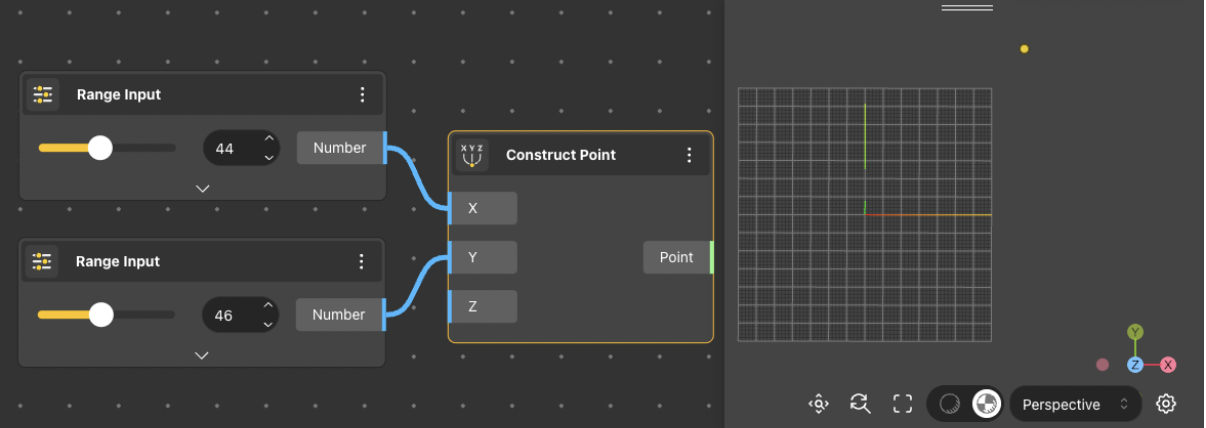

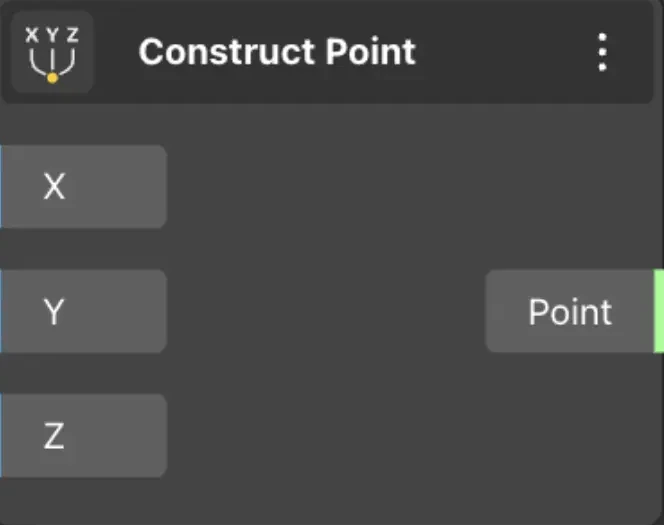

Construct Point
The Construct Point node generates a point within a three-dimensional coordinate system, with its x, y, and z coordinates defined by the input values. This node visually represents the resulting point on the viewer.
Usage example

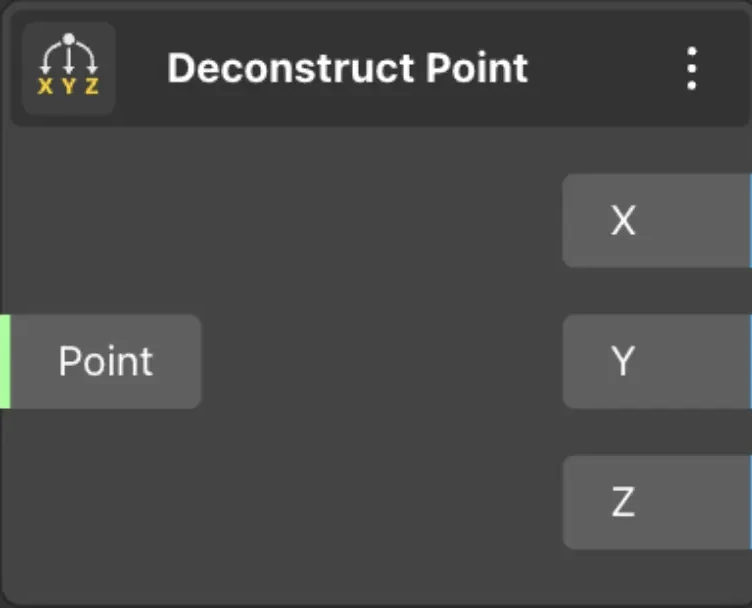

Deconstruct Point
The Deconstruct Point node extracts the x, y, and z coordinates from the input point.
Usage example

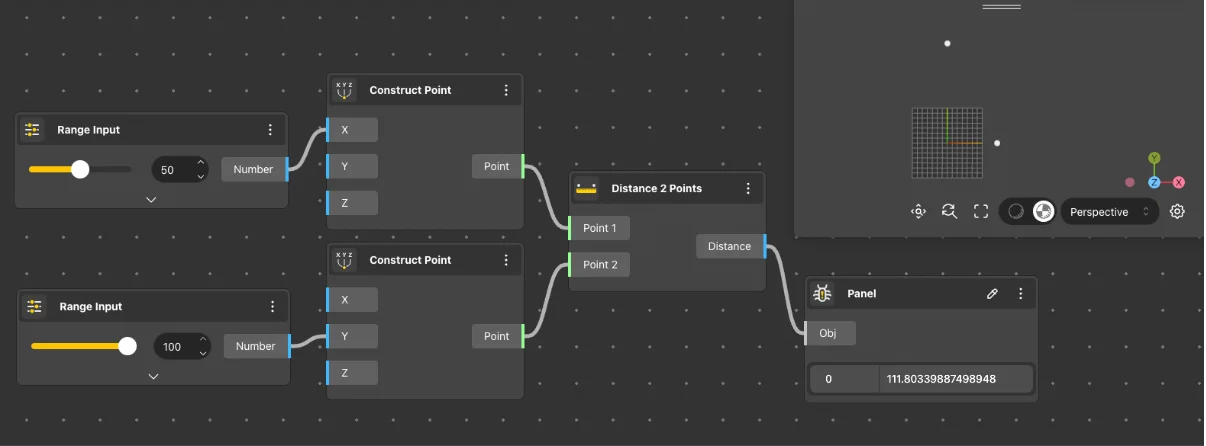

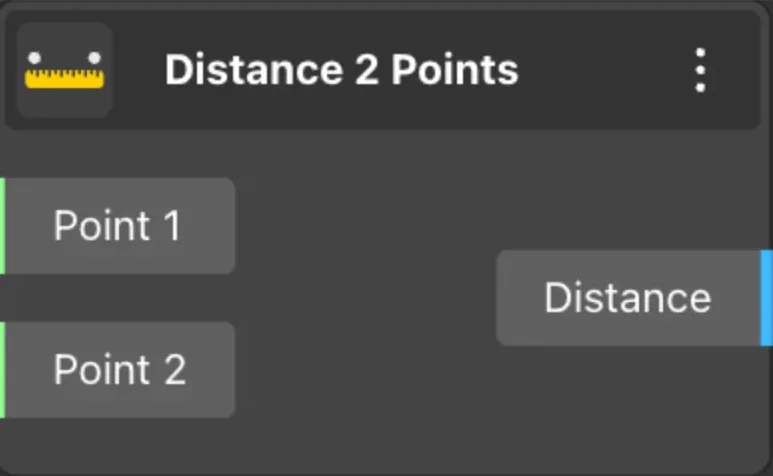

Distance 2 Points
The Distance 2 Points node returns the numeric value of the distance between two points.
Usage example

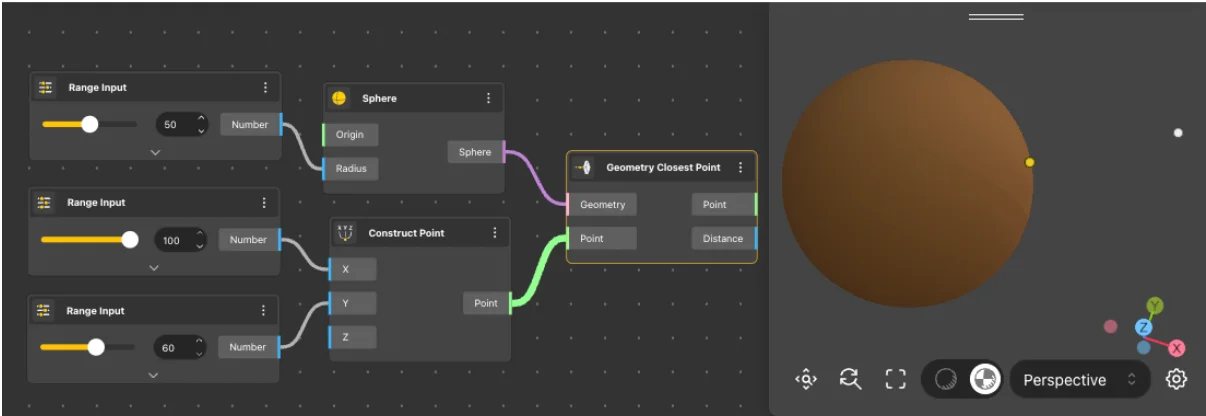

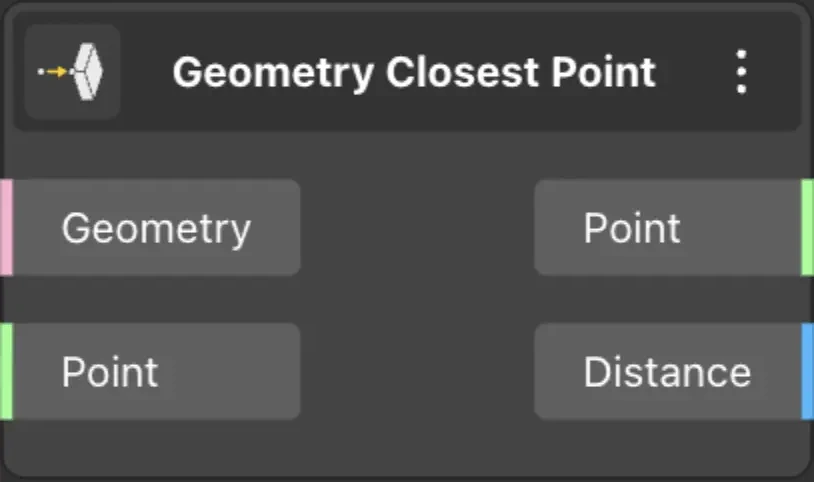

Geometry Closest Point
The Geometry Closest Point node takes a geometry and a point as input, providing the shortest distance between the given geometry and the point, along with the coordinates of the closest point on the geometry.
Usage example

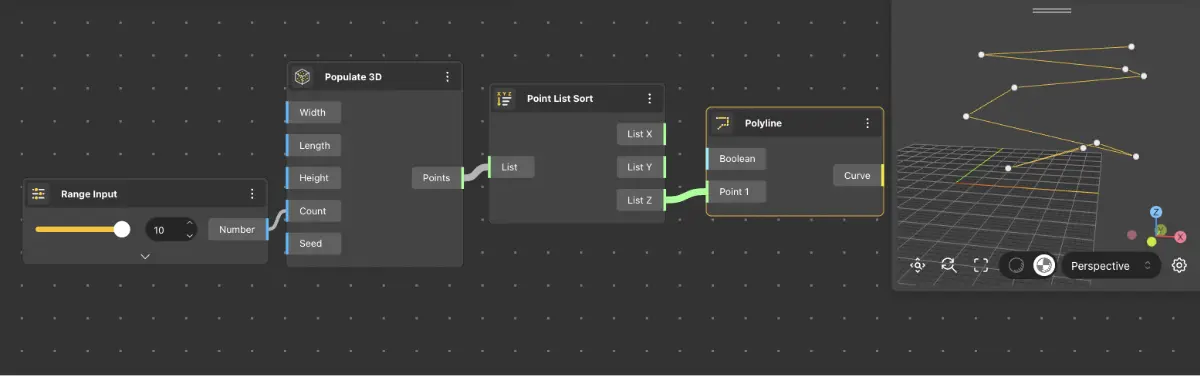

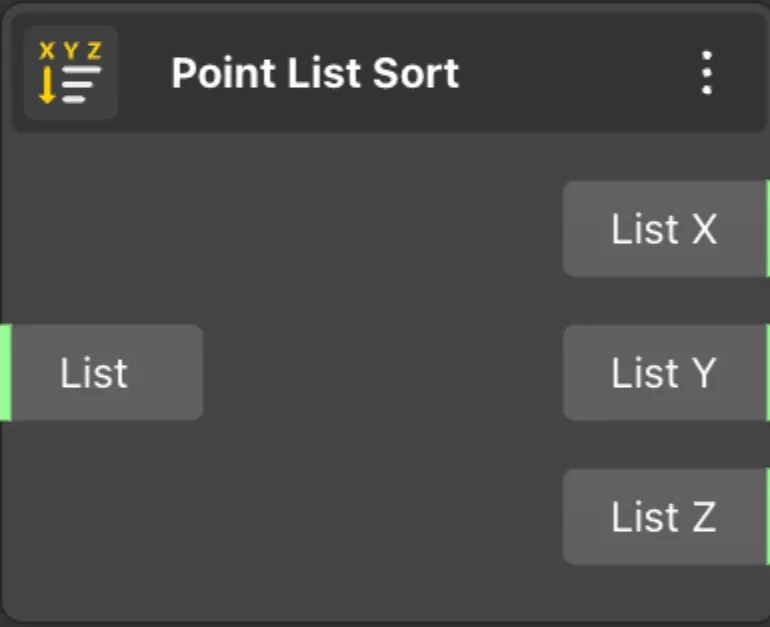

Point List Sort
The Point List Sort node takes points as input and outputs them sorted based on their x, y, or z coordinates.
Usage example

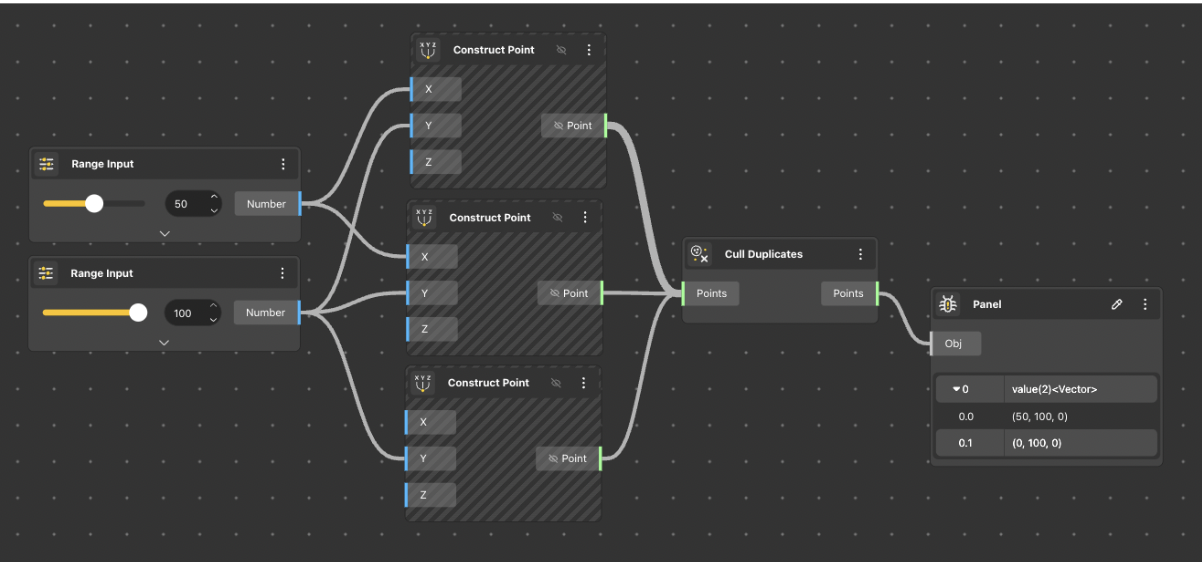

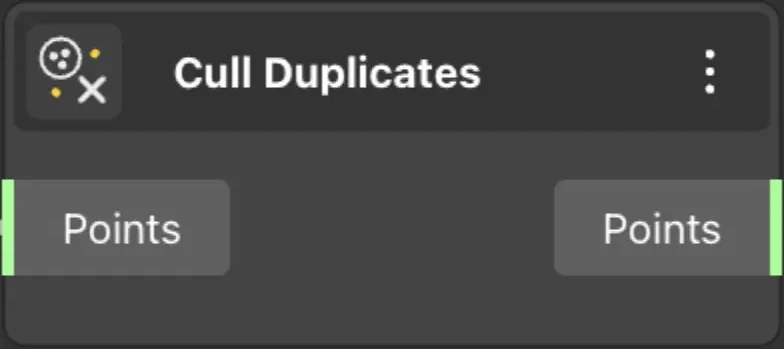

Cull Duplicates
The Cull Duplicates node takes points as input and removes any duplicate points from the list.
Usage example
